BLH & BLS Series – Compact 24 V Brushless DC Motors.
Both series offer efficient 24 V brushless DC motors with feedback via integrated Hall sensors. They cover a wide power range and enable stable speed control even under load changes. The main differences lie in the functional depth of the respective drivers. The motors are available with various gearbox types, including helical and hollow-shaft flat gearboxes.
BLH Series
The motors cover 15–100 W and offer a speed range of 100–3000 rpm (or 80–3000 rpm for digital and RS-485 drivers).
Three driver types are available: analog, digital, and RS-485 communication, each as a compact PCB driver.
Supported functions (depending on model):
– Torque limiting
– Load factor display
– Setting acceleration/deceleration ramps
– Multiple programmable speed levels
– Free MEXE02 parameterization software.

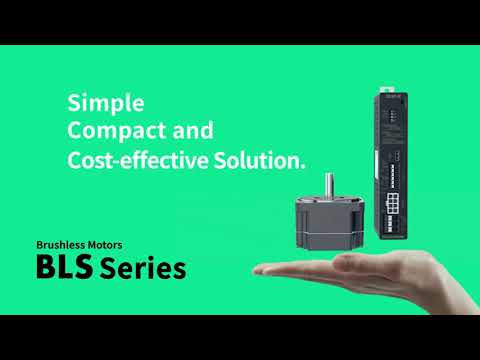

BLS Series
The BLS series offers 25–120 W of power at 100–2000 rpm or 100–4000 rpm, depending on the motor type.
The drivers are available in two versions:
– Simple type with particularly easy commissioning via an on/off signal
– as an RS-485 variant with extended parameterization via MEXE02 software
