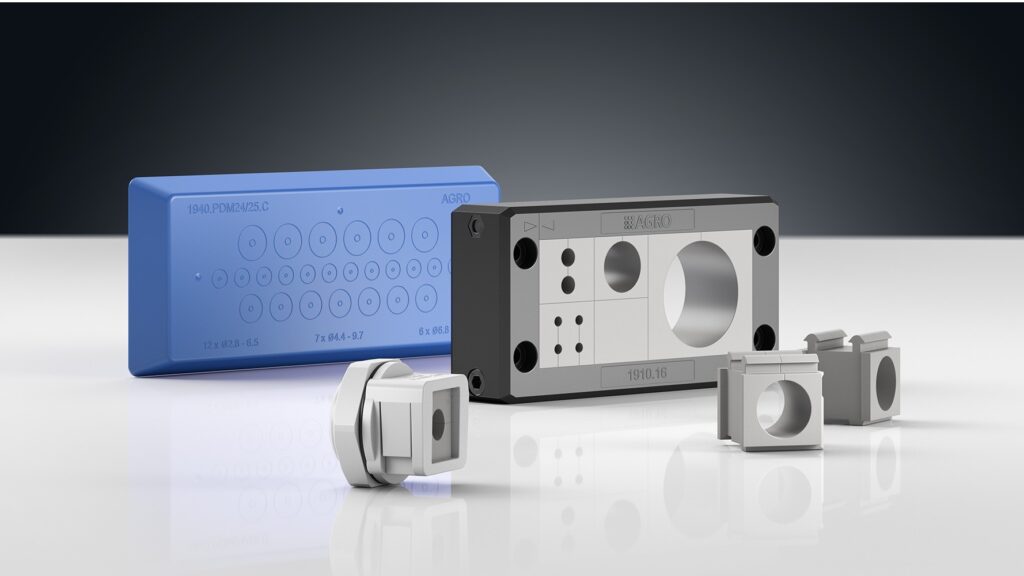

The new multiple cable feed-through systems in the MCE Syntec series save considerable time and space during installation compared to installing individual cable glands. Thanks to their modular design and a wide range of sealing units, the configuration can be adapted at any time. Since the assembly uses freely combinable grommets, warehousing, procurement and assembly processes can be significantly simplified. The flexible design and separability of the systems enable easy feed-through and strain relief for multiple cables – regardless of whether they are already fitted with plug connectors. This also preserves the manufacturer’s warranty for prefabricated connection cables.

The separable multiple cable feed-throughs have a robust, fire-retardant plastic frame and comply with the standard cut-out dimensions and hole patterns used in switch cabinet and machine construction. Up to 40 cables can be combined in the largest frame with a nominal size of 24. A wide range of split grommets is available: the small grommets are suitable for cables with a diameter of 2 to 17 mm, while the large grommets can accommodate cables up to 35 mm. Grommets with 1, 2 and 4 openings are available as standard, and double membranes ensure that the systems are securely sealed.

The housing of the new cable glands is separable and can therefore be retrofitted. The same sealing units from the multiple feed-through range are used. They are available for screw or snap-in mounting for protection classes IP 54 to IP 66 in straight or angled housings.

Diaphragm plates, for feed-through electric cables without plug connectors, offer a cost-effective solution for lower sealing requirements.

A comprehensive range of accessories is available, including blanking covers, sealing plugs, snap-in frames, grommets with threaded inserts or integrated pressure compensation elements.
